Click to enlarge

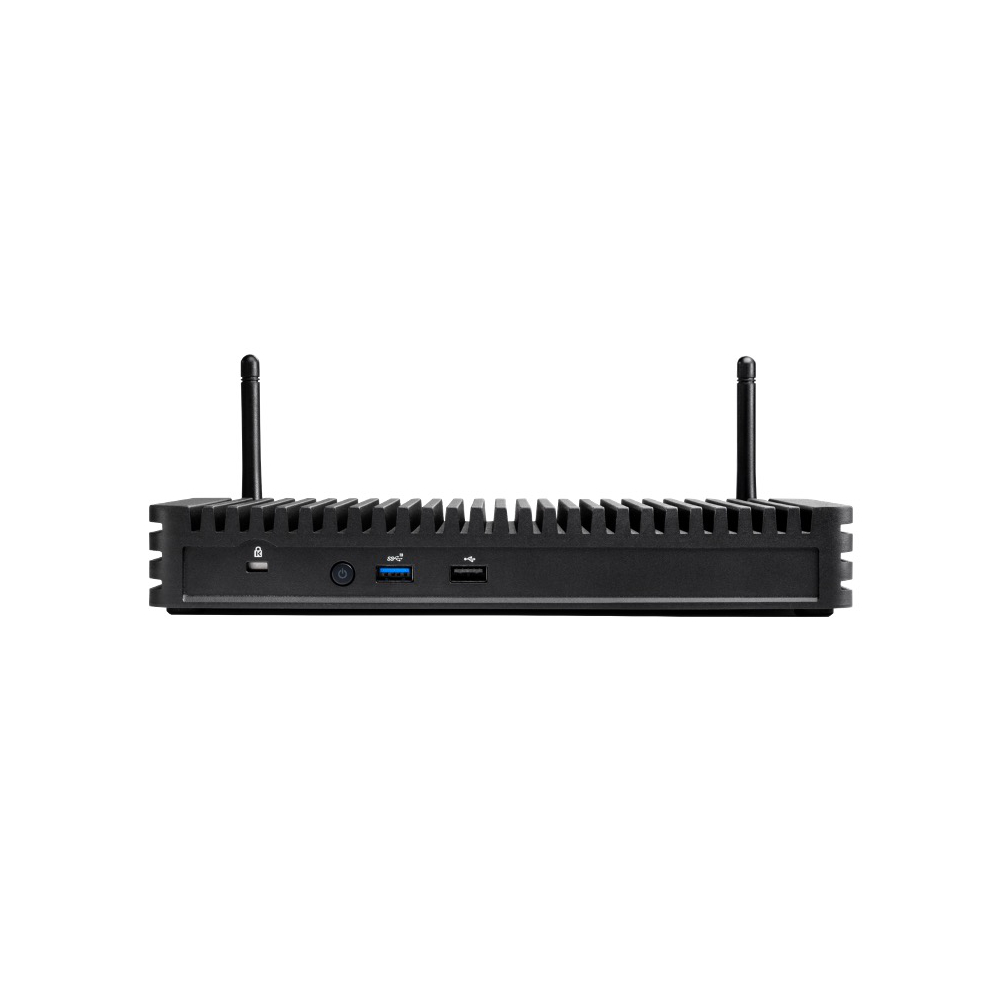

AquaNav Pro Pc

$2,619.95 ex GST

“AquaNav Pro is our new marine PC offering an ultra rugged, totally solid state, fan-less marine PC system. It’s the perfect navigation and charting PC with fast graphics, low power consumption, direct DC operation and an NMEA 2000 interface.”

SKU: ZDIGAQNAV Categories: Aqua PCs, PC Systems Tags: aquanav, digital yacht, marine pc, pc, PC on board
  • Description
  • Additional information
  • Manual and Downloads
  • what inside box
  • Videos
Description

KEY FEATURES

AquaNav Pro is a new member of the Digital Yacht Aqua PC family offering an ultra rugged, totally solid state, fan-less marine PC system.  Based on an Intel i3 processor and with Windows 10 as an operating system, it’s the perfect navigation and charting marine PC with fast graphics, low power consumption, direct DC operation and an NMEA 2000 interface included for easy connection to modern GPS, AIS and instrument systems.

It utilises a 240GB SSD and has three spare external USB ports and a network port for external wired connectivity.  There’s built in dual band wifi and Bluetooth plus support for two direct HMDI monitor/display connections.

SPECIFICATIONS

  • Ultra rugged totally solid state and fan-less design optimised for charting and navigation operation
  • 12V DC low power operation – typically 15-25W
  • Intel i3 processor, 4GM RAM with 240GB SSD
  • Dual HMDI video outputs
  • Integrated 2.4 & 5 GHz wifi
  • Integrated Bluetooth
  • Certified NMEA 2000 interface
  • 3 x Spare USB ports and wired LAN port
  • Powers up on application of DC power allowing remote or hidden mounting

TECHNICAL SPECIFICATIONS

Power

Operating Temp

Physical

•10-19v DC (approx. 15-25W power draw)  24V option

•-10 to +45 C

•Dimensions : 250 x 40 x 180 mm

•Weight 6,61 lb (3Kg)

•Depth 180mm (including the antennas)

External Ports•4 x USB (One dedicated to NMEA 2000 interface)

•1 x 10/100/1000MB network

•2 x HMDI Video Out

Wireless Connectivity•WiFi 802.11a/b/b/n 802.11 ac
Additional information
Weight 3000 kg
Dimensions 450 × 240 × 100 cm
Manual and Downloads

AQUANAV PC Product Manual V1 03

DOWNLOAD
what inside box

  • Power cable
  • Mounting bracket
  • Videos
